TGP.25.3000 / HDD / CNC

Manufacturer : MARIO CARNAGHI

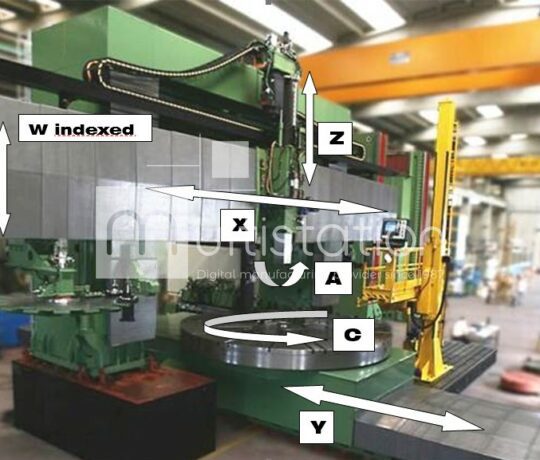

4+1 AXES CNC-CONTROLLED MACHINING CENTER

with movable cross-rail, movable table and ram head for turning, milling and drilling operations

Reference : M220314

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

Vertical MC for turning, milling and drilling operations with sliding table

Technical specifications

Working capacity

  • Table diameter : 2.500
  • turning diameter with vertical head mm. : 3.000
  • turning height over table mm. : 2.000

“Y” axis (table movement)

  • Table longitudinal movement along “Y” axis : ±1.500 (3.000)
  • Working and rapid feeds mm/min : 0÷20.000
  • Thrust on the axis N : 000

Table

  • Drive AC-motor (S1 – 100%) : 2 X 44 (88Kw)
  • Table rotation speed p.m. : 0÷180
  • weight admitted on table Kg. : 35.000

Cross-rail

  • Cross-rail travel on column, with indexing every 200 mm.: 1.200mm
  • Positioning interval : 200 mm
  • Cross-rail shifting speed : 360 /min

CNC-Numerical Control “SIEMENS SINUMERIK 840D SL”

Type/Model : TGP.25.3000/HDD/CNC

Process : Turning

Condition : Very good condition

Manufacturer

MARIO CARNAGHI
