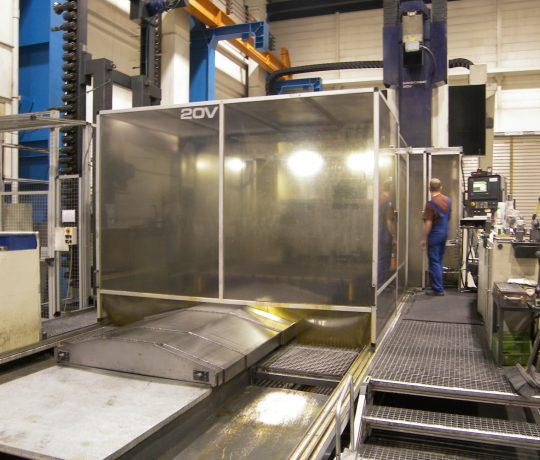

In good working condition
Technical details
Strokes
- X (table) 5 200 mm
- Y (chariot) 3 400 mm
- Z (broche) 1 250 mm
Feed speed
- X,Y 0 … 20 000 mm/min
- Z 0 … 15 000 mm/min
Max feed power – X,Y,Z 15 kN
Table 2 000x 5 000 mm
Maximum load of the table 100 kN
Width / differences groove of the table 22/160 mm
Passage width 2 580 mm
Table spreads nose 500 … 1 750 mm
Spindle
- Rotation speed 10 … 5 000 min-1
- Power max spindle motor 100% / 60% ED 37 / 46 kW
- Torque maximum spindle 1 000/1 250 Nm
- Tool spindle head according to DIN 69871 / 72 SK 50
- Diameter of the spindle bearing before 120 MM
Accuracy of axes
- With temperature of T = 20C°+-1°C
- Constancy of T = 0.5K / 2h
- Data as with VDI/DgQ 3441
- Linear axis X,Y, Z, for shaft lengths called X,Y,Z
- Indication accuracy X,Y, Z 0.001 mm
