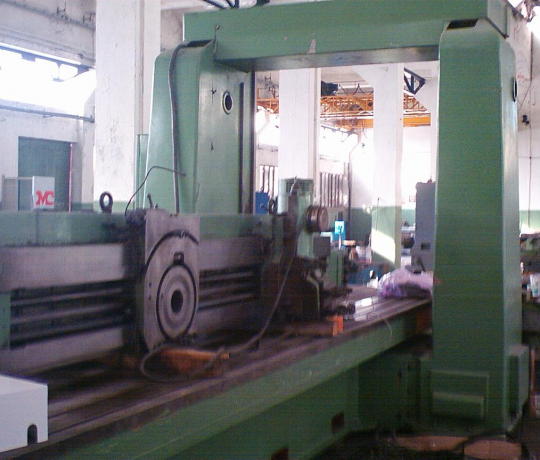

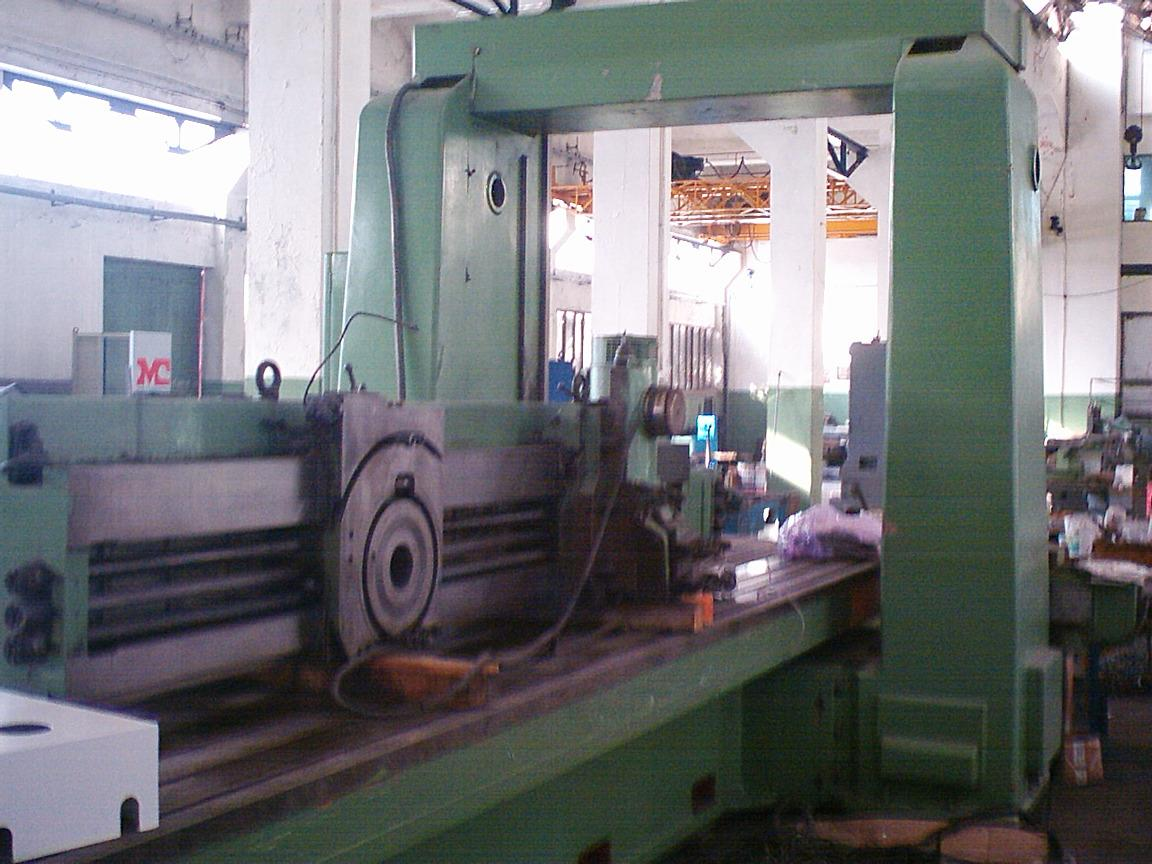

Technical description :
– planing length mm 6500
– planing width mm 1900
– planing height mm 1400
– table width mm 1550
– DC motor for table movement Kw 44
– table speeds m/min 6-60
– total weigth Kg 44.000
Complete with:
– no. 1 vertical planing head on the crossrail
– no. 1 side planing head on right column
– no. 1 milling head Kw 15 on the crossrail
– no. 1 milling head Kw 15 on the left column
– speed reducer for table speeds for milling operations
– speed reducer for transversal speeds for milling operations
