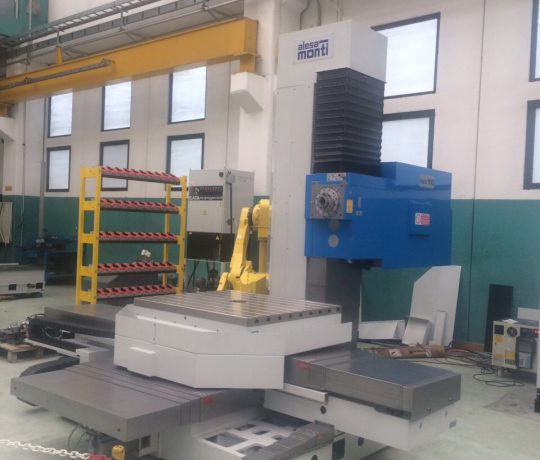

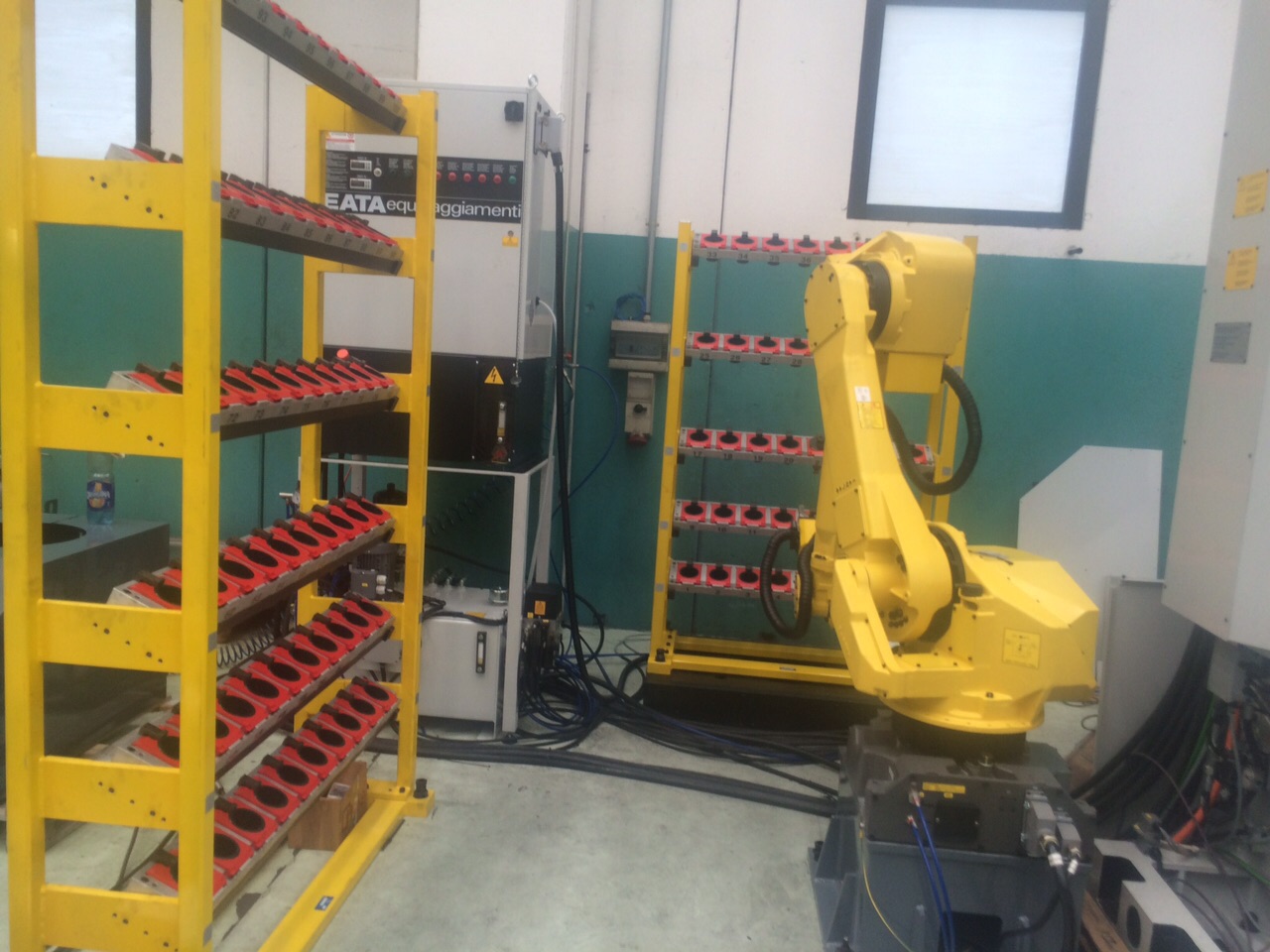

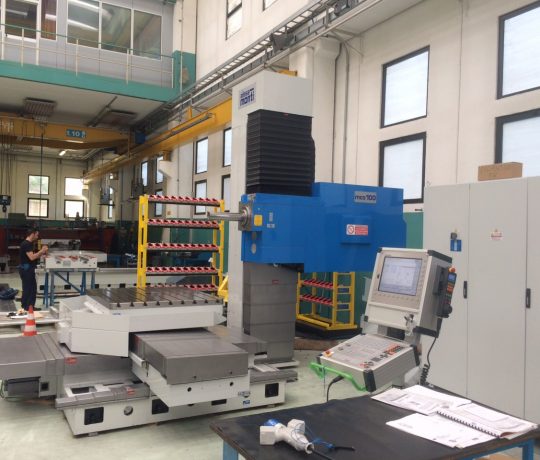

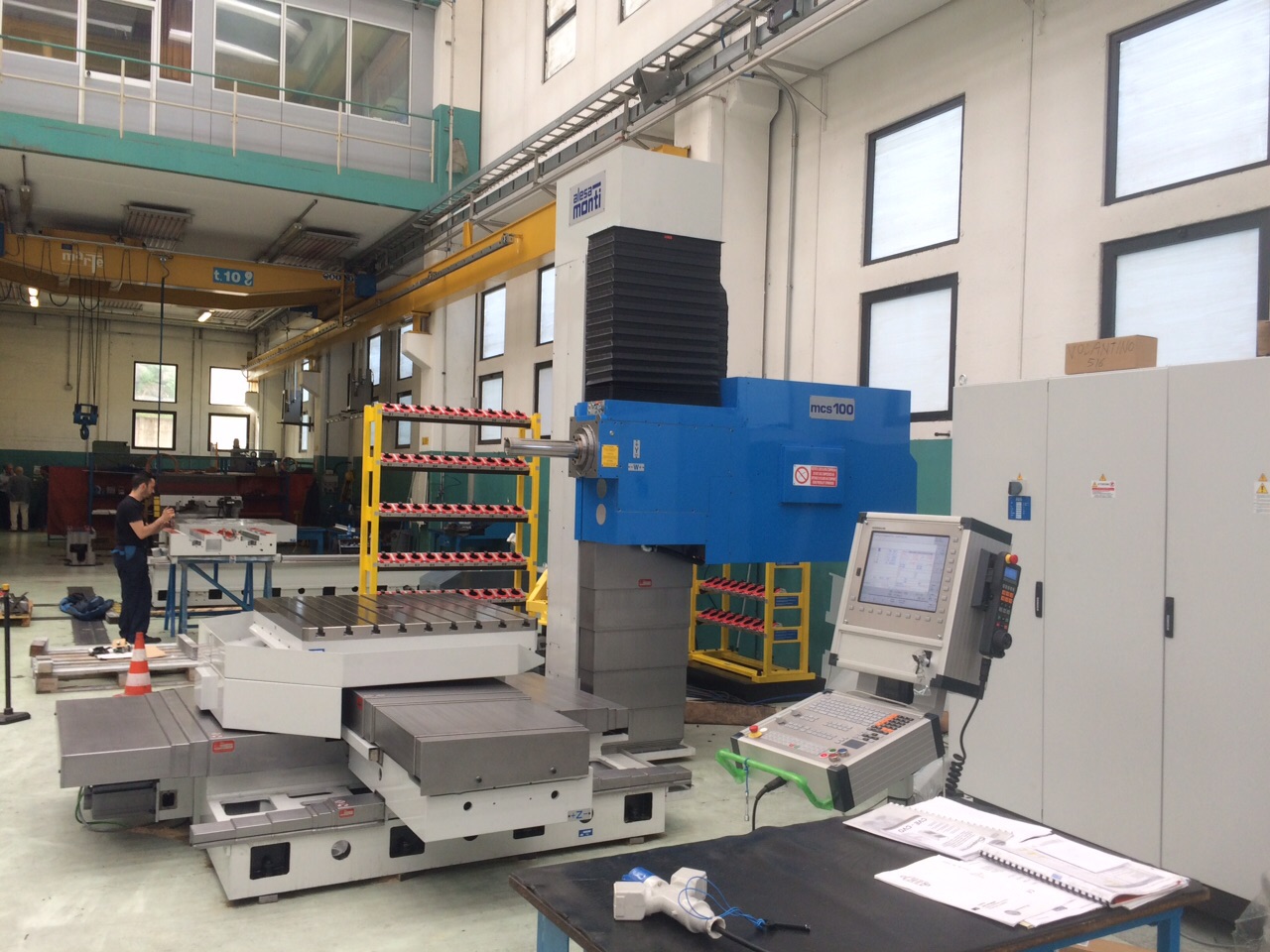

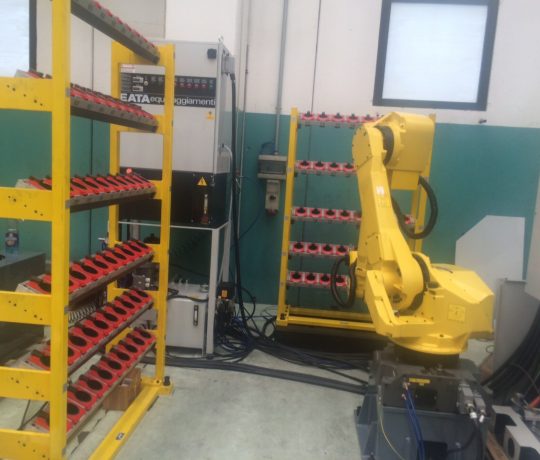

TECHNICAL FEATURES
NUMERICAL CONTROL UNIT : HEIDENHAIN iTNC 530 HSCI
SPINDLE
- Spindle taper ISO 50 – DIN 69871
- Boring spindle diameter mm 100
- Milling spindle diameter mm 180
- Spindle revs. stepless variable
- in 2 speed-ranges rpm 0 – 4000
TRAVELS
- Cross travel of the table (X axis) mm 2500
- Longitudinal travel of the table (Z axis) mm 1000
- Vertical travel of the head (Y axis) mm 1700
- Longitudinal travel of the boring spindle (W axis) mm 600

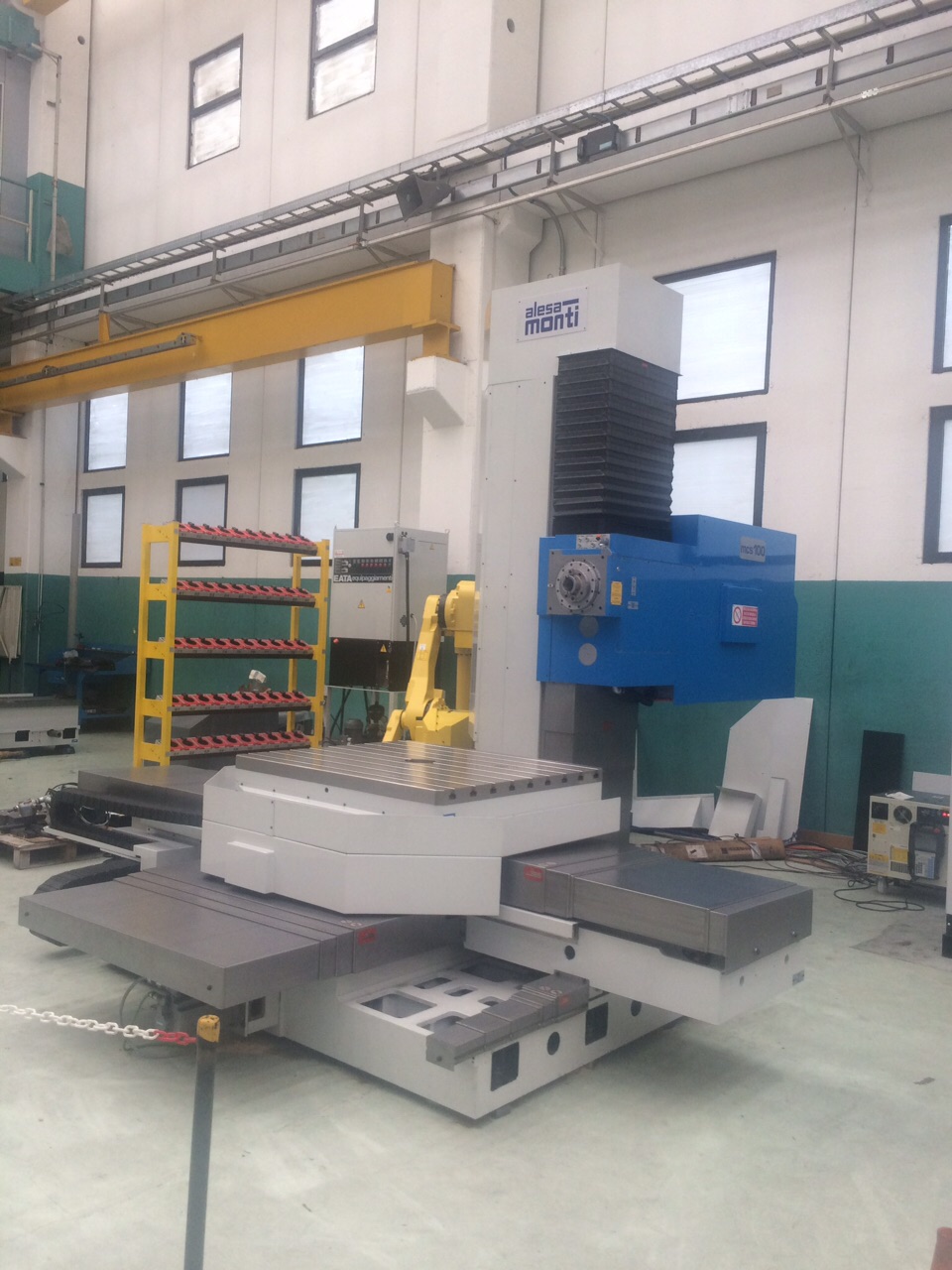

ROTARY TABLE (B-axis)
- Setup surface mm 1100 x 1300
- Working rotation rpm 0.1 – 2
- Fast rotation rpm 2
- N° 9 T-slots mm 22 H7
- Distance between slots mm 125
- Max. weight admitted on the table (equally distributed) kg 4000
FEEDS
- Feeds for axes X Y Z W (stepless variable) mm/min 0 – 5000
- Rapid traverses for axes X Y Z (stepless variable) mm/min 20000
- Rapid traverses for axis W (stepless variable) mm/min 15000
INSTALLED POWERS
- Spindle motor (S1) kW 22
- N° 2 motors for axes X Z Nm 27
- N° 3 motors for axes Y W B Nm 20
- Hydraulic power unit motor kW 1,5
- Lubrication pump motor kW 0,25
