Cutting

YETI TOOL – Smartbench PrecisionPro Mini

Manufacturer : Yeti Tool
Sectors : Education, Fablabs, Industry

Being able to bring your CNC milling machine wherever you want is now possible thanks to the YetiTool Smartbench Mini. Light, compact, quick and easy to assemble and disassemble in less than 5 minutes, the Smartbench mini will follow you everywhere. You will be able to mill all types of materials up to 1250 x 1250 mm on site.

Reference : YetiToolSmartBenchPrecisionPro-Mini
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Smart and nomadic CNC milling machine

Easily transportable, it will follow you in all your projects

  • Fits easily into a utility vehicle or large car
  • Less than 5 min to assemble or disassemble it
  • Light and easy to carry by a single person thanks to its assemblable modules (Traverse X, table, legs, turret)

Large format machining

Machining dimensions of 1250x1250mm. Or for even larger panels, opt for the Smartbench Precision Pro

Precision and quality

Finished part accuracy of 0.5mm or better

The ideal machine for both beginners and more experienced CNC users

  • Cut simple shapes with no CAD required thanks to the Shapecutter interface directly on the machine screen
  • Compatible with all CAD software for more elaborate projects
  • Placement of reference points easy to place thanks to the Z probe and the laser pointer
  • Extraction system controlled by the console
  • Simple and fast file transfer thanks to Wifi or USB

A real asset for your business

  • Quick setup and machining management directly on the touch console
  • Improved working time thanks to the possibility of carrying out several cutting operations
  • Time saving thanks to its autonomy, devote time to other tasks while the machine works alone

A wide variety of materials

Tested and approved by YetiTool…

  • Wood: Hardwoods, softwoods, mdf, plywood
  • Plastics: acrylics, PVC,..
  • Composites: HPL, Corian,…
  • Aluminum

…and an infinity of other materials to experiment with

Work safely

  • Emergency stop button
  • Interrupt bars
  • CE standards
  • Completely enclosed cutter work area

Movement

  • X axis travel 1265 mm
  • X axis Max travel speed : 6 m/minute
  • Y axis travel: 1290 mm
  • Y axis Max travel speed: 6 m/minute
  • Z axis travel: 152 mm
  • Z axis Max travel speed: 2 m/minute
  • Maximum cut size 1250 x 1250
  • X and Y axis : Pinion and rack
  • Z axis : lead screws

Electrical Installation

  • Voltage: 230 V
  • Power : 1400 Watts
  • Software compatibility: All CAD/CAM software with GRBL post processor
  • File types: nc. Or gcode.

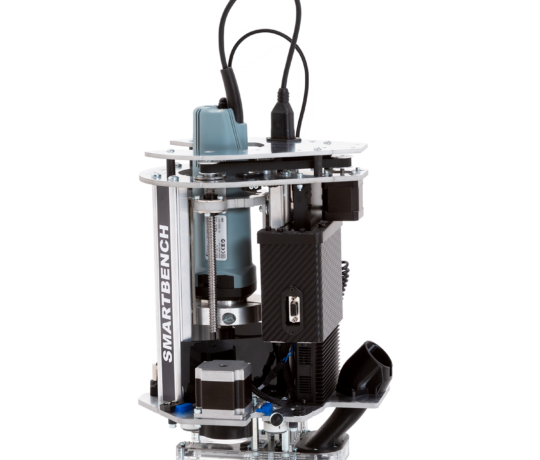

Spindle

  • Rotation speed: 4000 to 25000 rpm
  • Speed ​​control: Digital
  • Automatic spindle stop: yes
  • Power: 1000w
  • Collet: ER16 – max shank 10 mm
  • Accuracy of finished part: +/-0.5mm or better

Dimensions of the machine

  • Length: 1635 mm
  • Width: 1650 mm
  • Height: 1350 mm
  • Weight: 50 kg

Package Details

  • Number of packages: 4
  • Z Head : 55 x 35 x 35cm – 15 kg
  • X Beam : 165 x 39 x 35cm – 35 kg
  • Leg Box : 110 x 35 x 35cm – 15 kg
  • Y Crate : 165 x 54 x 11cm – 30 kg

Manufacturer

Logo YetiTool

Yeti Tool

WWW.YETITOOL.COM Yeti Tool Ltd is a British technology company who design and manufacture smart tools for the workshop & job-site. By digitising the control of power tools and accessories, they revolutionise the project workflow. Their innovative, mobile systems enable custom, automated manufacturing — reducing error and improving accuracy in a…
