FORMECHT 450DT
FORMECHT 450DT
FORMECHT 450DT
FORMECHT 450DT
FORMECHT 450DT
vignette vidéo
Fablabs

Thermoforming 450DT

Manufacturer : Thermoforming machine
Sectors : Education, Fablabs, Industry, Automotive

Manual thermoforming machine 430 x 280 x 160 mm with 4 “touch screen and programmable logic control system with up to 20 programs.

Reference : Thermoforming450DT
Brochure requestAsk for a quotation
rea-securite
Guarantee
rea-telephone
After sales service
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

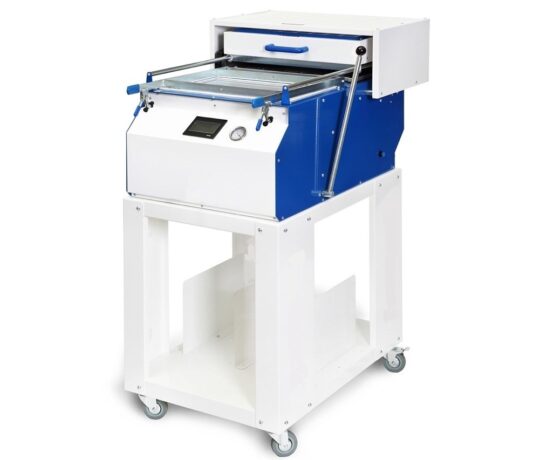

Thermoforming 450DT

430 x 280 x 160 manual thermoformer with 4 “touch screen and programmable logic control system that can store up to 20 programs.

Formech continues to bring the latest technology and functionality to a wider range of thermoformers.

The new 450DT (now replacing the 300XQ) is equipped with a programmable logic control (PLC) system. The graphics and icons allow a quick and easy use of the machine. The 450DT can save up to 20 thermoforming programs which allows the user to quickly load existing projects. The new 450DT offers students, designers and inventors an answer to the demands of the industry.

CHARACTERISTICS

4 “TOUCH SCREEN WITH MEMORY FUNCTION

Mitsubishi 4 “Touch Screen with up to 20 programs.

QUARTZ HEATER WITH STANDBY VARIABLE

Quartz heaters heat very quickly and save time and energy.

4 CONTROLLED HEATING ZONES INDEPENDENTLY

Four Quartz heating zones that provide warmth quickly and thermoform demanding shapes and materials.

EMPTY & DISMANTLING

Once the formed portion cools, air is injected between the mold and the plastic to release the molding.

GAUGE

A visual indication of the applied vacuum (pressure in Hg / bar).

Thermoforming 450DT

  • Sheet area : 450 x 300 mm
  • Forming surface : 430 x 280 mm
  • Depth of thermoforming : 160 mm
  • Width : 639 mm
  • Height : 525 mm
  • Depth : 986 mm
  • Thickness of the material : 6 mm
  • Heating type : Quartz
  • Heating zones : 4
  • Quartz heater with variable standby 4 independently controllable heating zones
  • Vacuum & Demoulding
  • manometer
  • 240V, 13 amps
  • 50 Hz single phase
  • Power consumption : 2.3 kW

Manufacturer

Thermoforming machine

The thermoforming process is used to produce thermoplastic parts for a wide variety of applications, including high-tech, aeronautics, automotive, packaging and interior design. It's a fast, simple solution that involves heating a thermoplastic in coil or sheet form to make it malleable and take on the shape of a mold.
