Solidscape S325+
Solidscape S325+
Solidscape S325+
Solidscape S325+
Additive-Manufacturing

Solidscape S325 +

Manufacturer : SOLIDSCAPE
Sectors : Jewelry

The entry-level priced S325+ delivers the extraordinary precision and production performance jewelers need.

The S325+ was designed to help you create the jewelry of your dreams. Now could be your time to upgrade to the industry’s best castability, model quality and performance.

Reference : SolidscapeS325+
Brochure requestAsk for a quotation
rea-securite
Guarantee
rea-telephone
After sales service
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

S325+ Production printer at an entry level price

THE SPEED YOU NEED

  • Higher production for small jewelry manufacturers
  • Meets your daily workflow needs

CONSISTENCY

Drop on demand material jetting and meticulous milling at every layer produce models of dimensional accuracy beyond any other technology.

EASY TO USE

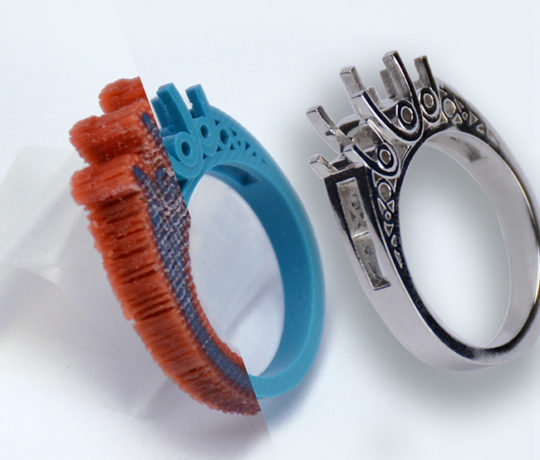

Auto-generated support dissolves hands-free, revealing a perfect wax model without blemishes.

RELIABLE WORKFLOW

Solidscape wax models are a direct route to fi nished casting. 100% castable in gold, platinum and all precious metals.

Work smarter, not harder

PRINTING PROPERTIES

  • Layer Thickness : 0.0015 inch (0.038 mm)
  • Resolution : 5000 X 5000 dots/inch (197 X 197 dots/mm) in X, Y
  • Accuracy : ±0.005 inch (127 µm) for 1st inch (25.4 mm), ±0.001 inch/inch (25.4 µm) each additional inch X,Y and Z
  • Surface Finish : Layer thickness-dependent, up to 32 micro-inches (RMS)
  • Start Process : Fully automated, one-touch operation
  • Status Monitoring : Fully automated fault detection, restarts build from point of interruption
  • Calibration Capacit y: Quicker calibration and ability to select calibration frequency means less wasted material

PRINTER SPECS

  • Build Envelope : 6 x 6 x 4 inches (152.4 x 152.4 x 101.6 mm)
  • Dimensions : 21.4 x 18 x 16 inches (558 x 495 x 419 mm)
  • Weight : 80 lbs (36 kg)
  • Power : 100 - 240 V Required
  • Operating Temperature : 60° to 75°F (16° to 24°C)
  • Humidity : 40-60%
  • Agency Compliance : CE Certifi ed, FCC Class B approved, TUV certifi ed EN 60950 Compliant

MATERIAL PROPERTIES

  • Midas® Castable Material : Proprietary model material formulated for clean burnout, producing 100% direct casting results
  • Melt® Dissolvable Support : Proprietary support material engineered to dissolve completely, hands-free, resulting in superior surface fi nish
  • Material Capacity : Larger tanks require less fi lling and allow for longer print runs
  • Material Monitoring : Display indicates build and support material levels accurately in 10% increments

SOFTWARE AND SYSTEM REQUIREMENTS

  • One-Click Software : Automatically formats CAD fi les for 3D printing
  • CAD File Input : .stl and .slc fi les
  • System : Windows, PC-to-printer connectivity via high-speed USB 2.0 or Ethernet
