Lazzati – Linea T-Type

Manufacturer : Lazzati
Sectors : Industry, Automotive, Aerospace

High-Performance Boring-Mills

Reference : LAZZATILineaTType
Brochure requestAsk for a quotation
rea-securite
Guarantee
rea-telephone
After sales service
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

High-Performance Boring-Mills

Lazzati LineaT-Type Ram-MillingRAM-MILLING

  • Head with Milling Borer RAM movement,
  • travel 1600 mm,
  • equipped with universal controlled head.

MILLING

  • Head with Milling Borer fix RAM. = 500 mm,
  • equipped with universal controlled head.

Lazzati LineaT-Type BoringBORING

  • Head with boring spindle movement Ø130 x 180 mm
  • travels 800 x 1.300 mm,
  • equipped with interface for accessory heads





Lazzati LineaT-Type Ram-Boring

Ram-Boring

  • Head with Milling Borer RAM movement, travels 700 x 1000 mm
  • and boring spindle movement Ø130 x 180 mm,
  • travel 1.000 mm,
  • equipped with interface for accessory heads.

Advantages

Ergonomic Design

  • Optimal visibility
  • Facilitated access and positioning of the pieces
  • Total exploitation of the working area
  • Max comfort for the operator

Modularity

  • Table X travels up to X=7.000 mm
  • Possibility to have different table configuration and different table loads
  • Different possibility of positioning according to the customer’s request

Rigidity

  • Very rigid design of the two beds
  • Compact design
  • Lowest distance from the floor
  • Spindle Headstock very close to the table center

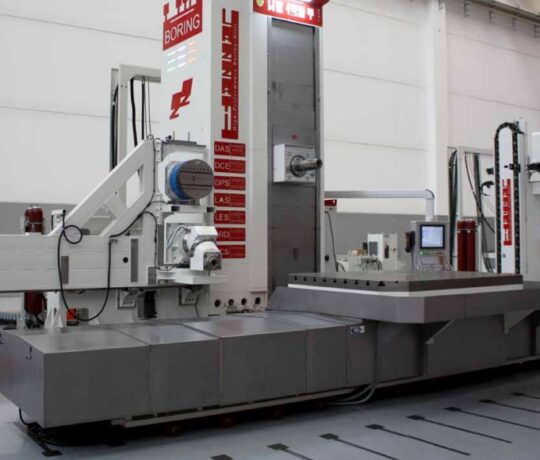

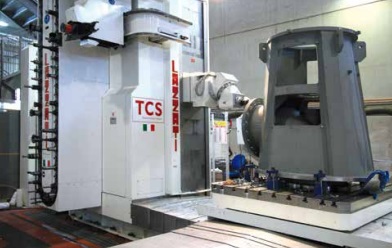

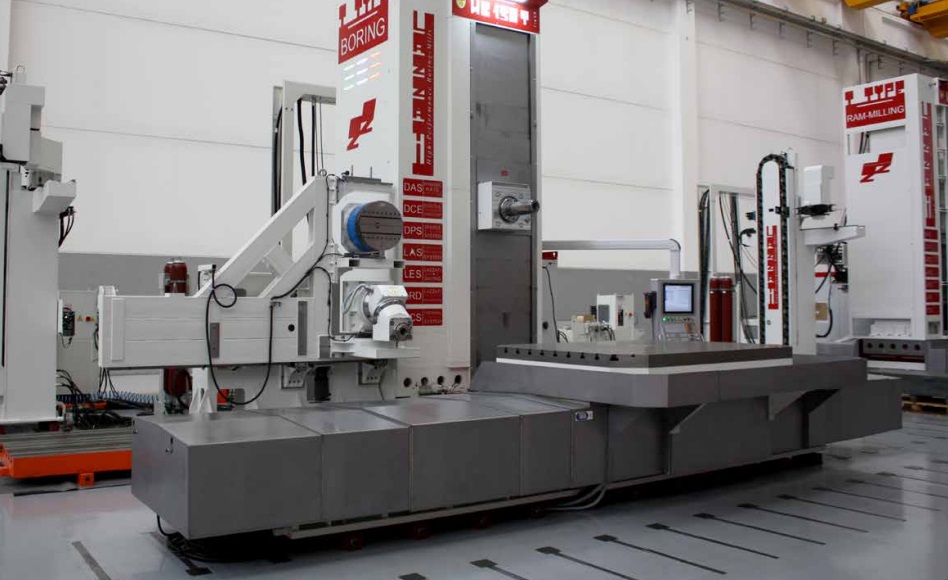

Linea T-Type – Boring

Hydrostatic Boring Mill with “T” Moving Column
with Rotary Table and Boring Spindle

Ø Boring Spindle 130 x 180 mm.
Max. Motor Spindle Power 75 – 80 kW
Spindle Travel – W 800 x 1.300 mm.
Vertical Head Travel – Y 2.000 x 3.500 mm.
Cross Column Travel – X 3.000 x 7.000 mm.
Max. Admitted Table Load – B 15 x 60 Ton.

Linea T-Type – Ram Boring

Hydrostatic Boring Mill with “T” Moving Column
with Rotary Table and Ram + Boring Spindle

Ø Boring Spindle 130 x 180 mm.
Spindle Travel – W 800 – 1.000 mm.
Long. RAM Travel – V 700 – 1.000 mm.
Vertical Head Travel – Y 2.000 x 3.500 mm.
Cross Column Travel – X 3.000 x 7.000 mm.
Max. Admitted Table Load – B 15 x 60 Ton.

Linea T-Type – Milling

Hydrostatic Milling machines with “T” Moving Column
with Rotary Table and Automatic Universal Head

Automatic Universal Head 2 x 360° – 2 x 360.000°
Max. Motor Spindle Power 75 kW
Long. RAM Travel – W Fix 900mm
Max. Spindle Rotation Speed 6.000 RPM
Vertical Head Travel – Y 2.100 – 2.600 mm.
Cross Column Travel – X 3.000 – 4.000 mm.
Max. Admitted Table Load – B 15 Ton.

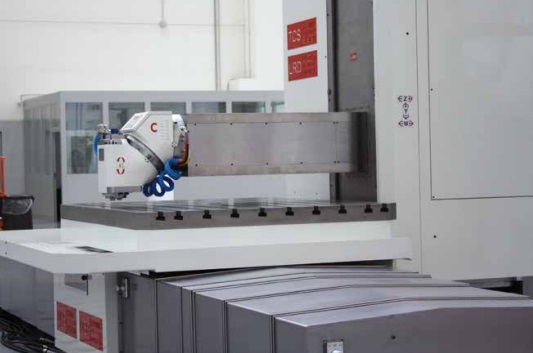

Linea T-Type – Ram Milling

Hydrostatic Milling machines with “T” Moving Column
with Rotary Table and Ram + Automatic Universal Head

Automatic Universal Head 2 x 360° – 2 x 360.000°
Max. Motor Spindle Power 75 kW
Long. RAM Travel – W 1.300 – 1.600 mm.
Max. Spindle Rotation Speed 6.000 RPM
Vertical Head Travel – Y 2.000 x 3.000 mm.
Cross Column Travel – X 3.000 x 6.000 mm.
Max. Admitted Table Load – B 15 x 40 Ton.

Manufacturer

Logo Lazzati

Lazzati

LAZZATI, one of the world’s leading manufacturers of heavy horizontal boring and milling machines, was established in 1939. The headquarters and the factory are located only 15 km from Milan Malpensa Airport. Thanks to its long tradition of research and development, LAZZATI brand is globally recognized for high technology and top-level machine tool…
