Additive-Manufacturing

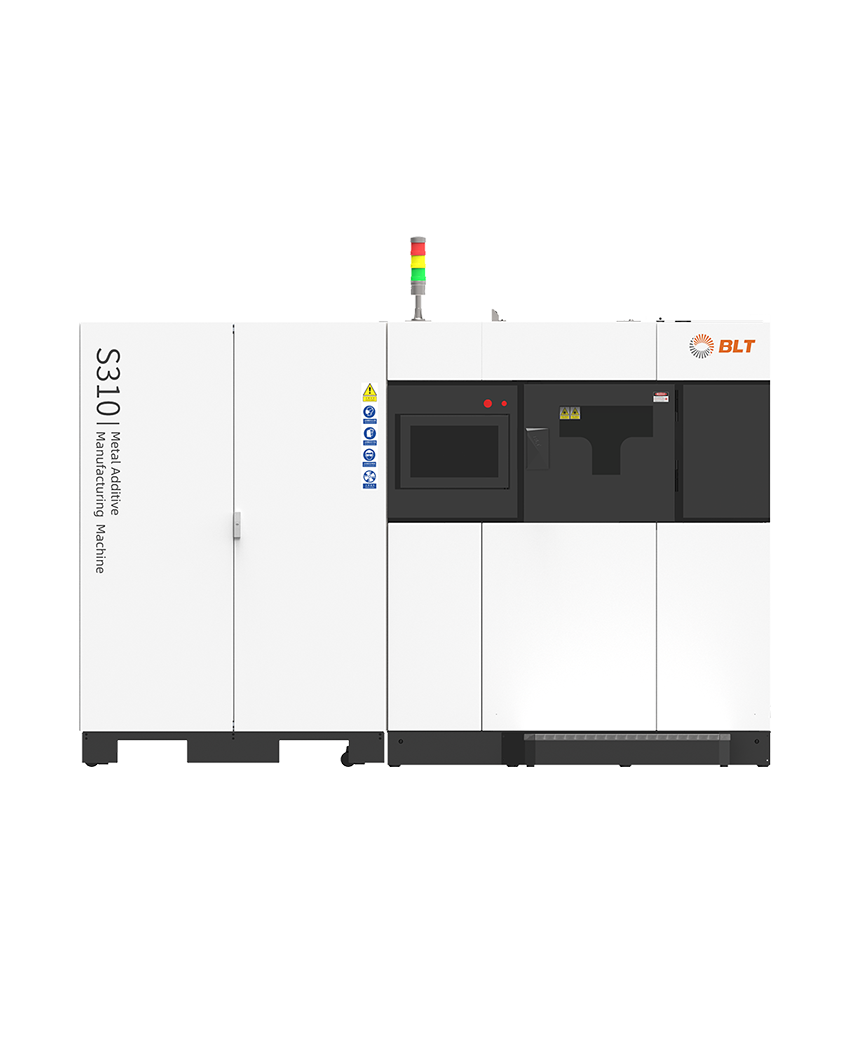

BLT S serie

Manufacturer : BLT
Sectors : Aerospace, Automotive, Industry, Railway, Jewelry, Fablabs, Education, Dental / Medical

The S series from the manufacturer BLT corresponds to its serie dedicated to the aeronautics, space and automotive sectors. This serie includes a total of 11 machines, with various sizes and powers. These machines use the Laser Powder Bed Fusion (L-PBF) process.

Reference : BLTSserie
Brochure requestAsk for a quotation
rea-securite
Guarantee
rea-telephone
After sales service
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

BLT S serie METAL 3D PRINTER

A WIDE RANGE OF METAL 3D PRINTERS

The S series is resolutely geared towards industry, with state-of-the-art SLM machines suitable for any type of production.

This variety of available models allows the user to find the machine that perfectly matches their needs, with a wide range of print volumes and number of lasers available.

This range starts with the S210, a small machine rather oriented towards research and small parts, up to the S800, a machine with oversized dimensions offering the largest print volume on the market, oriented towards high-tech industry.

This range of possibilities makes it possible to cover a large number of fields of application, from research to space and medical.

HIGH-END TECHNICAL PROPERTIES

All of these machines are equipped with high-tech equipment and features, such as compatibility with more than ten different materials, automatic error diagnosis, real-time monitoring of the printing process, or yet full traceability of part production.

They are also equipped with a complete oxygen control circuit and a redundant safety system.

Finally, the materials and components used are of very high quality, guaranteeing the longevity of the machines.

All of these capabilities ensure optimal transparency and ease of use.

Print volume and number of lasers of each machine

  • S210 : 105 x 105 x 200 mm, 1 x 500 W
  • S310/S320 : 250 x 250 x 400 mm, 1 x 500 W / 2 x 500 W
  • S400 : 400 x 250 x 400 mm, 2 x 500 W; 3 x 500 W
  • S450 : 400 x 400 x 500 mm, 1 x 500 W; 2 x 500 W; 4 x 500 W
  • S450T : 400 x 450 x 500 mm, 1 x 500 W; 2 x 500 W; 4 x 500 W
  • S450Q : 450 x 450 x 500 mm, 1 x 500 W; 2 x 500 W; 4 x 500 W
  • S510 : 500 x 500 x  000 mm, 4 x 500 W; 6 x 500 W
  • S520 : 500 x 500 x 1500 mm, 4 x 500 W; 6 x 500 W
  • S600 : 600 x 600 x 600 mm, 4 x 500 W; 6 x 500 W
  • S800 : 800 x 800 x 600 mm, 4 x 500 W; 6 x 500 W

Common specificities

  • Supported materials: Titanium, aluminum, superalloy, stainless steel, high-strength steel, tool steel
  • Wavelength: 1060 nm – 1080 nm
  • Beam quality: M²<1.1
  • Optical system: F-theta lens
  • Max scan speed: 7 m/s
  • Layer thickness: 20 µm – 100 µm
  • Reupholstery: Single/double direction
  • Minimum oxygen level: < 100 ppm
  • Software: Magics; BLT-BP; BLT-MCS

Manufacturer

Logo BLT

BLT

Bright Laser Technology (BLT) Introduced to the market in 2011, BLT keeps breaking records. This chinese company of Xi’an sells the biggest SLM machines available on the market, with printing volumes reaching a cubic meter. The available materials are the following : Very quickly, the company made sure to devellop fondamental…
