Dual Material Spline Shaft

Spline shafts are mechanical components which allow torque transmission where both linear and
rotational motions are required. Dual material printing on the Meltio M450 allows the seamless integration of an encoder in a shaft forrotation and position measurement. The spline shaft is made from stainless steel 316L (non-magnetic) while the inserts are printed from mild steel (magnetic). A static Hall-effect sensor is used to detect the position and speed of the rotang shaft, by detecting the magnetic field of the embedded magnetic inserts. Because the mild steel inserts are completely covered by the stainless steel shaft, corrosion resistance performance of the shaft is preserved.

Applications

• Mechanical assemblies

Printing Parameters

• System: Meltio M450
• Material: SS316LSi + Mild Steel
• Gas: Argon
• Gas Flow: 10 liters per minute (lpm)
• Size: 76 x 76 x 185 mm
• Weight: 3.2 kg
• Laser Power: 1000 W
• Layer Height: 1.2 mm
• Printing Time: 11:59:00

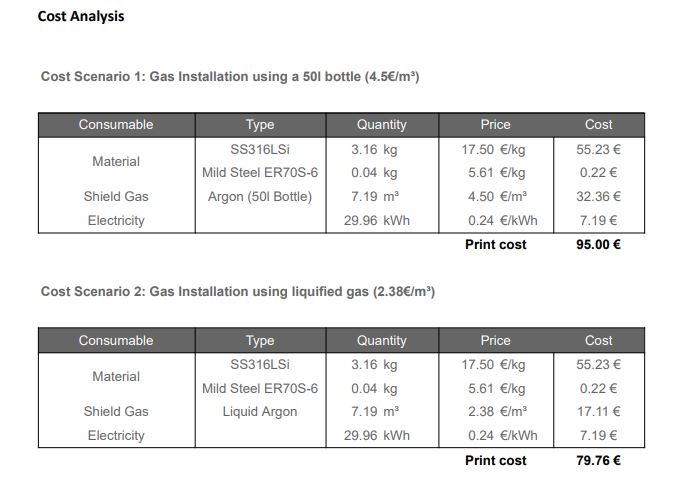

Business Case Drivers

• Faster method.
• Less expensive process.
• Reduction of Supply Chain Dependence.
• Reduction of inventory and shipping costs due the possibility of producing the part in house.
• Demand-based production.
• Carbon footprint reduction compared to traditional production methods.

• Article from our partner Meltio
